Product

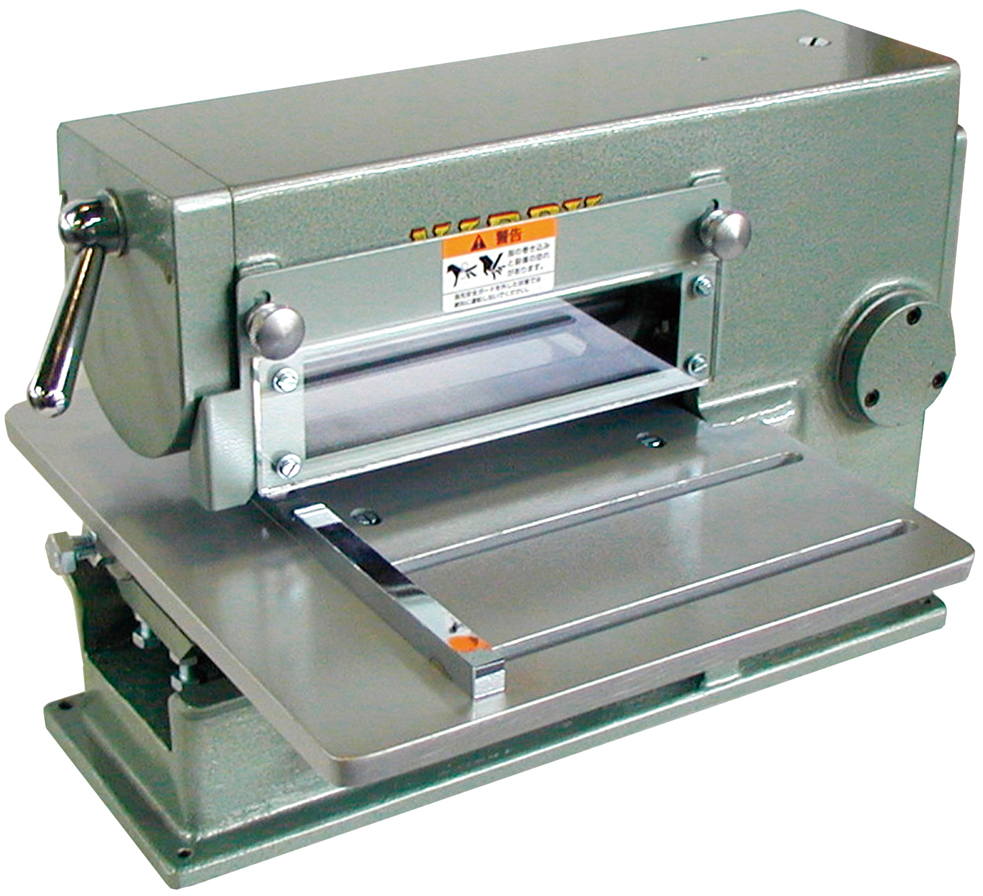

Strap cutting machine (Slitter machine )

Product No NP-15
Model
name
Strap cutting machine (Slitter machine )

Machinical explanation

This machine is for cutting the width of materials such as leather products, PU, Vinyl, rubber and foam etc.
It can change the cutting width you required by replacing washer between knife and knife.

Machinical feature

・Possible to use each types of cutting machines with the number of strap, materials,cutting usage.
・Possible to produce washer which is a part for making cutting width according to your request.
・Whenever you order parts or purchase the machine, we will arrange washers  for your request size of cutting.
・Possible to accept special oder for your requests such as cutting with more wider size or additional equipment.
Max cutting width: standard 5mm (Max: 15mm)
Cutting numbers of sheets : 10straps

Specification

Max machine width 175mm
Max cutting width 5mm standard (MAX15mm)
Cutting numbers of sheets 10pcs
rim speed ration of knife / lower roller 2:1
Machine size 330 L (mm) x 440 W (mm) x 280 H (mm)
Packing size 400 L (mm) x 850 W (mm) x 455 H (mm)
Weight 50 kg
Remarks *Necessary to arrange a table, stand and clucth motor

Introduction of another Strap cutting machine, Slitter mac

NP-15 NP-2017 NP-18
