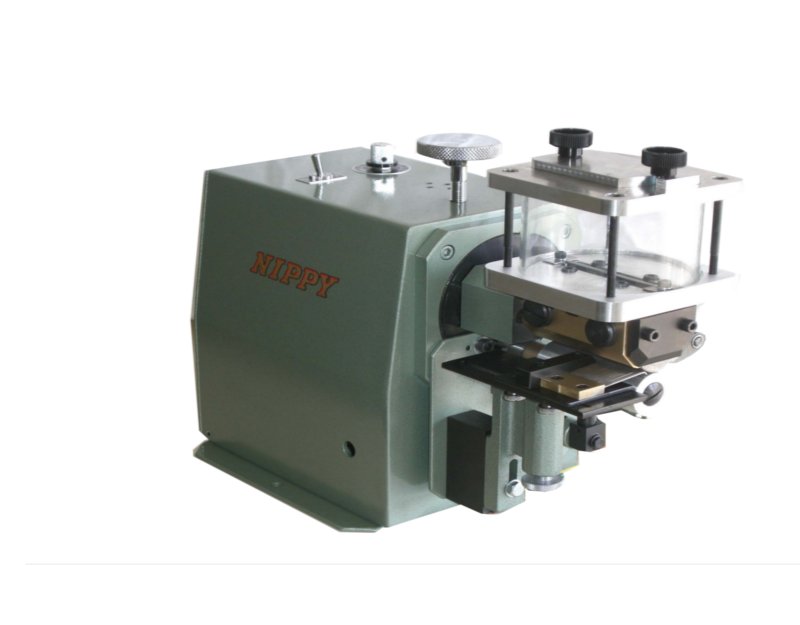

Rubber gluing machine ( built -in motor)
| Product No | NP-1508 |
|---|---|
| Model name |
Rubber gluing machine ( built -in motor) |
Machinical explanation
Roll coater for rubber glue(upper side)
Machinical feature

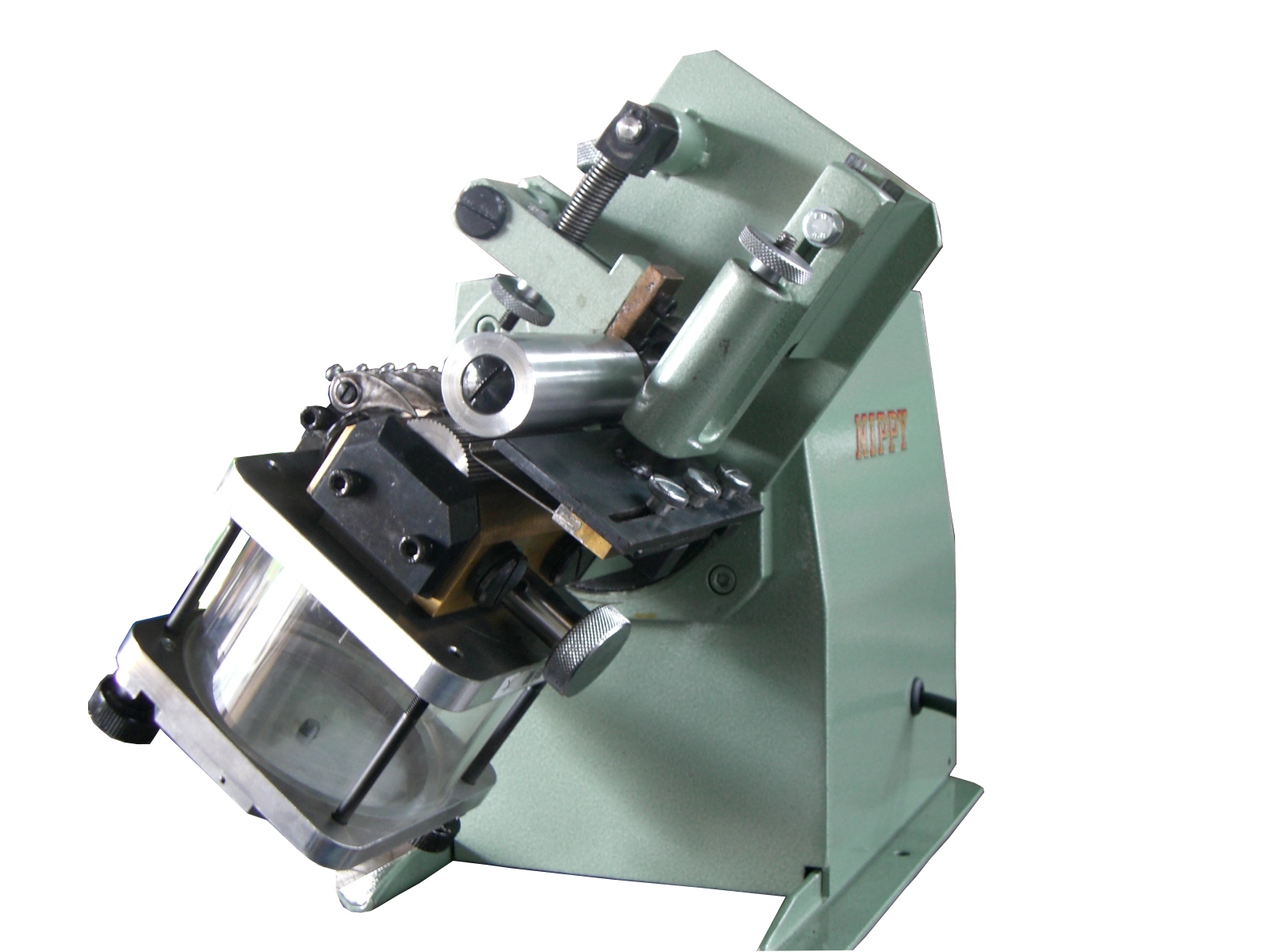

①Glue tank revolves 180 degree
②Gluing from upper side and possible to glue to uneven surface comfortably
③Possible to control feed speed for working easily
④Easy to maintenace, possible to prevent drying glue by revolving tank when the machine is not us
Specification
| Gluing wide | 80mm |
|---|---|
| Main usage | Gluing machine for rubber glue(Upper side, compact type) |
| Machine size | 200 L (mm) x 360 W (mm) x 300 H (mm) |
| Weight | 17 kg |
| Remarks | Quality of glue : Rubber glue(Recommendable viscosity: 15,000cps) Gluing side : Under side, with presser spring Adjustment for feeding speed : Volume type speed adjustment Capacity of tank : 0.4L Power : AC100V 30w |
|---|
