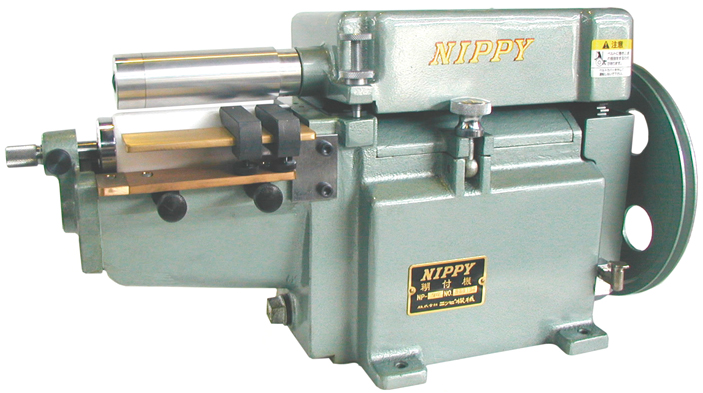

Gluing machine for uneven material

Product No	NP-76
Model name	Gluing machine for uneven material

Machinical explanation

Roll coater for uneven surface of materials for rubber glue

Machinical feature

The gluing roller made of special material is very elastic, so it is suitable for gluing especially onto
uneven surface of materials. Gluing width : 120mm
Quality of glue : Rubber glue(Recommendable viscosity: 15,000cps)
Gluing side : Under side (Gelatinous roller)
Capacity of tank : 1.4L

Specification

Gluing wide	120mm
Main usage	Gluing machine for rubber (Under side, special type)
Machine size	230 L (mm) x 545 W (mm) x 265 H (mm)
Weight	40 kg

Remarks	Remarks : Necessary to arrange a table, stand and general-purpose motor.
