Leather skiving machine

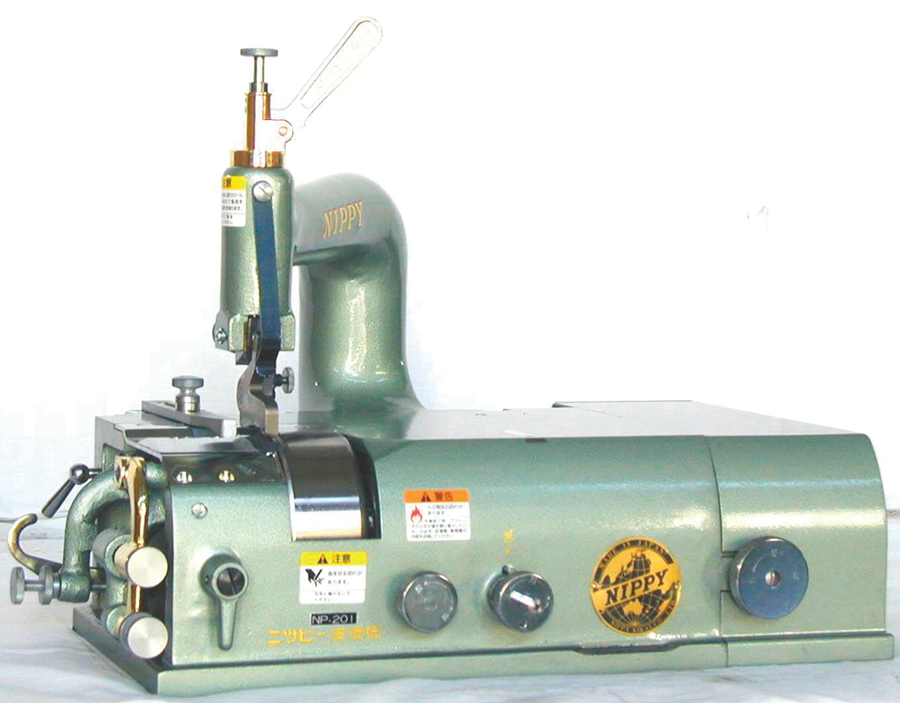

Leather skiving machine

Product No	NP-201
Model name	Leather skiving machine

Machinical explanation

Standard model for skiving process for general use

Machinical feature

①Adjustable Main shaft of collet type
②Scrap-ejecting device is provided
③ON/OFF switch of grinder is provided
④3-feeding speeds
⑤Easy to replace grinder and feeding belt
⑥various presser foot available
⑦Reliable design for a long time
⑧High quality knife axial runout accuracy

Specification

machine specification	Leather skiving machine (Patented type)
Max skiving width	50mm
Main usage	For making shoes and bags
Machine size	380 L (mm) x 535 W (mm) x 395 H (mm)
Packing size	650 L (mm) x 470 W (mm) x 430 H (mm)

Remarks	Necessary to arrange a table, stand, and clucth mortor for use.
