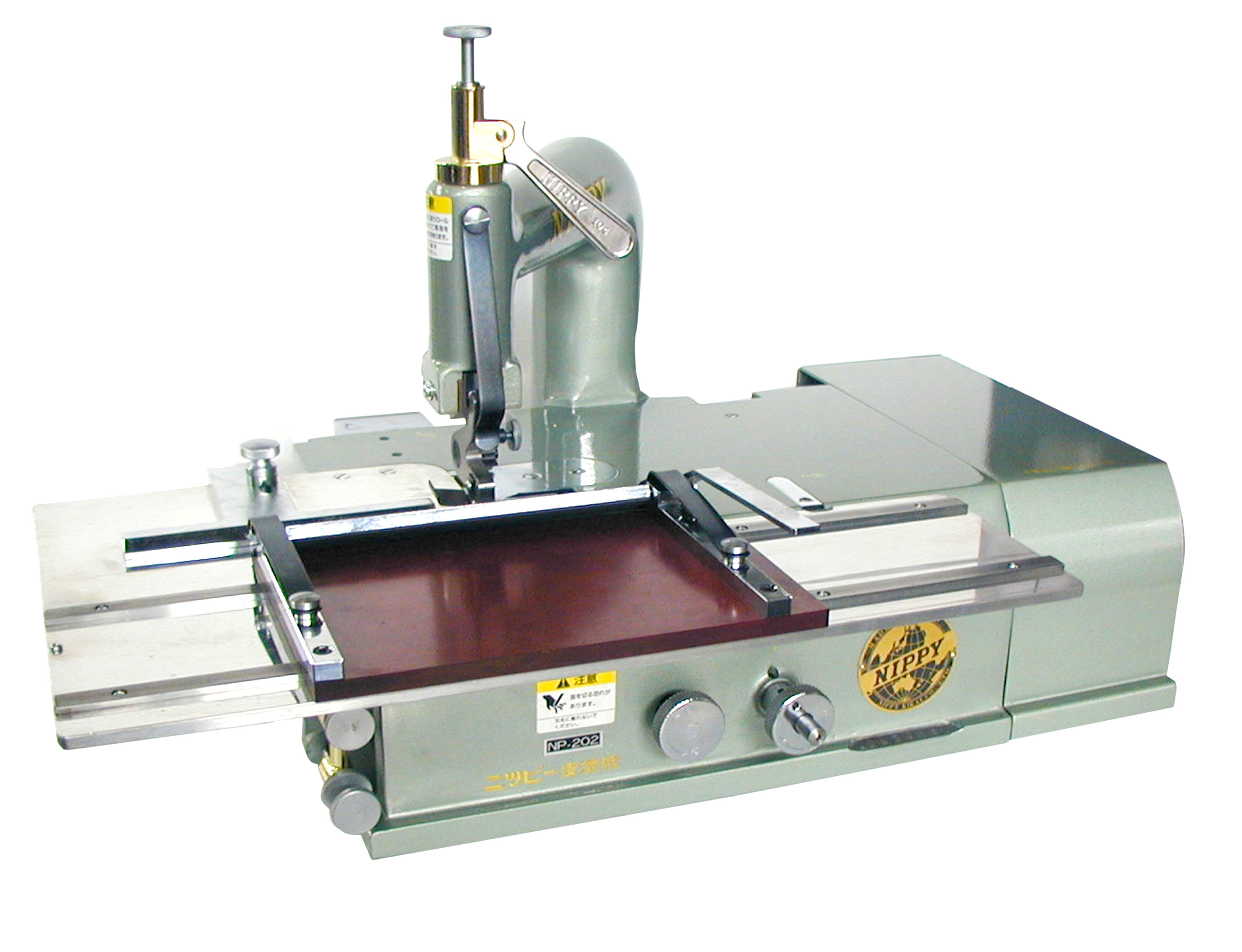

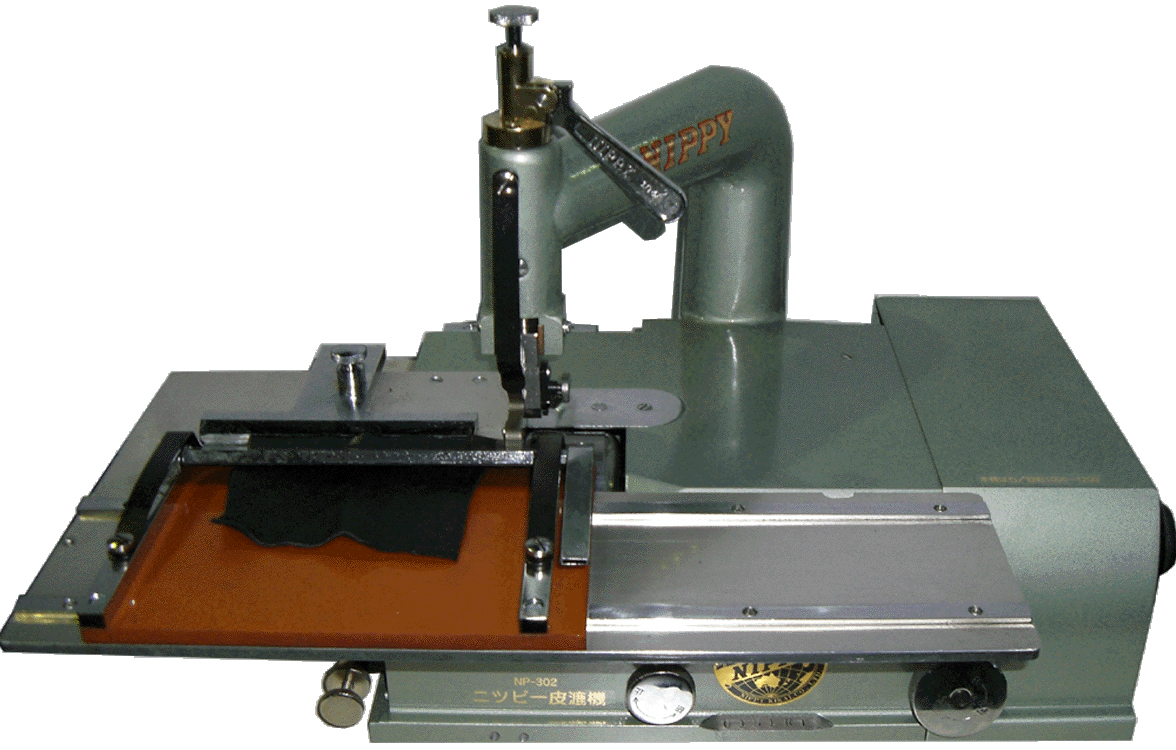

Skiving machine attached slant skiving set
| Product No | Slant skiving set |
|---|---|
| Model name |
Skiving machine attached slant skiving set |
Machinical explanation
Attachment for slant skiving by moving table with fixed material to the table.
Machinical feature

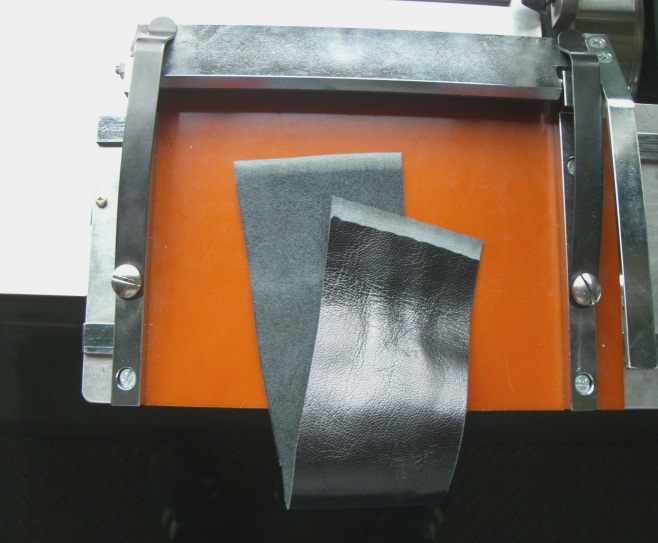

Possible to skive leather strap and jointed surface of materials easily with equally angle by sliding a table with fixed material. *Possible to attach to the standard machine after purchasing.
Specification
| machine specification | NP215 |
|---|---|
| Max skiving width | 10mm(standard) |
| Main usage | Leather strap, Jointed part of leather |
| Remarks | skiving wide ：8mm、10mm（standard）、12mm feed roller ：20mm、22mm（standard）、24mm table wide ：175mm（standaard ）、250mm、350mm、500mm、 650mm |
|---|
