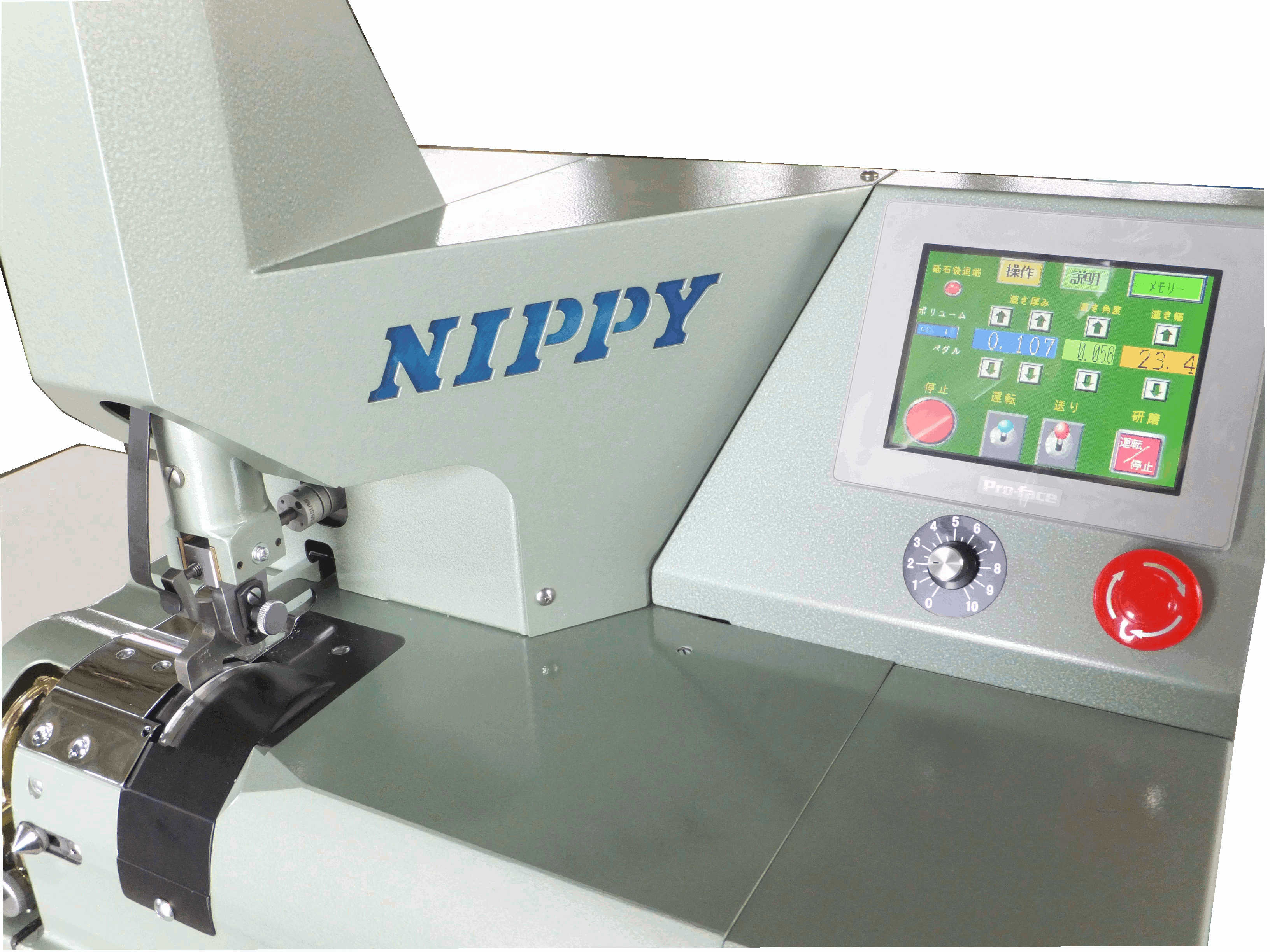

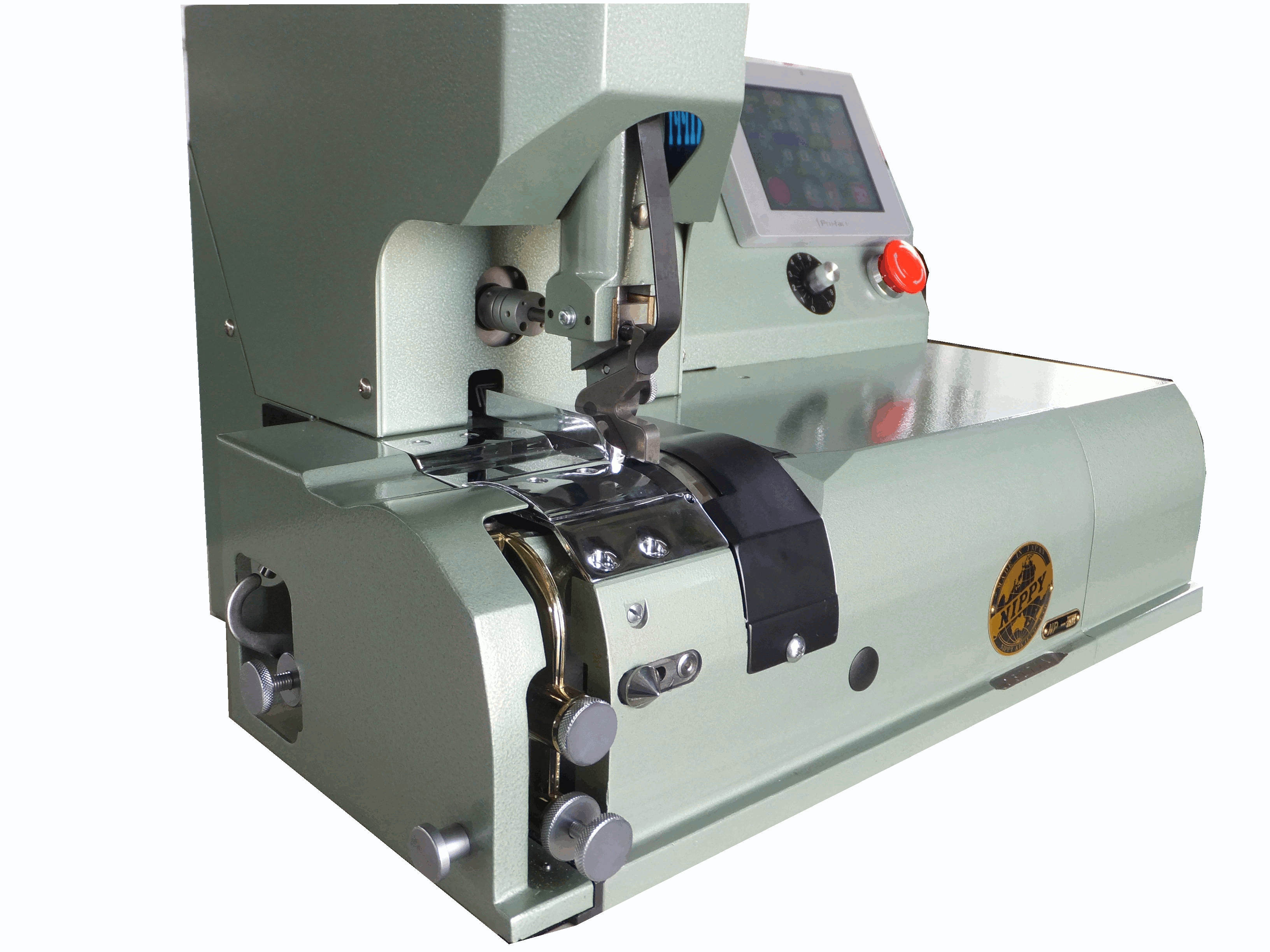

Automatic control leather skiving machine

Automatic control leather skiving machine

Product No	NP-S3TC
Model name	Automatic control leather skiving machine

Machinical explanation

Automatic control of presser foot high and angle ,guide postion .

Machinical feature

・Thickness and angle of presser foot and wide of guide digital adjustment function
・99 patterns for memory indication
・Automatic following grinder system with
grinder load
・Sharpness of knife with micron accuracy
・Long durability of bell shaped knife and grinder
・Stabilized knife edge with device for removing
knife scrap of back side
・Possible to install standard presser foot

Specification

machine specification	leather goods
Max skiving width	50
Machine size	1370 L (mm) x 520 W (mm) x 1250 H (mm)

Remarks	・Skiving width: 0-50mm, thickness: 0-7.5mm , angle:0-11° ・Automatic fine grind device (CBN Grinder or Standard type) ・Material feeding speed: 0-29m/min ・Material feeding speed: Automatic constant speed or pedal variable adjustment ・Power: 500W ・Power consumption: AC220V, Single phase
